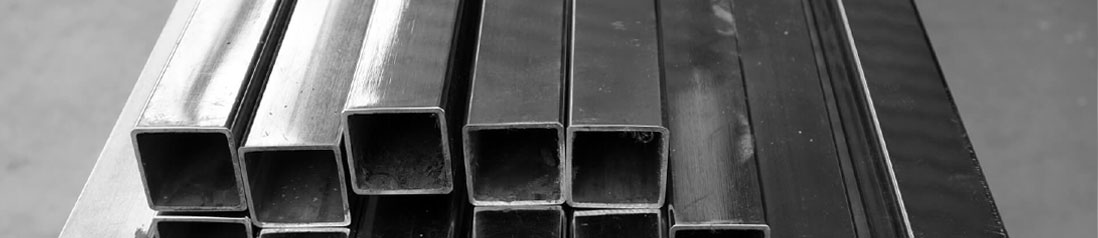

Thanks to its great strength, resistance to corrosion, and aesthetic appeal, stainless steel has grown to be a preferred material in the building sector. A554 Gr 316Ti stands out among the available grades as a dependable and adaptable choice for square hollow sections. In this post, we'll examine the salient characteristics and advantages of square hollow sections made of stainless steel A554 Gr 316Ti. A modified variant of the 316 grade known as stainless steel A554 Gr 316Ti adds extra titanium to increase its resistance to sensitization and intergranular corrosion. This makes it perfect for use in harsh locations where exposure to high temperatures or corrosive materials is a worry.

The remarkable endurance of square hollow sections made of A554 Gr 316Ti is one of their main features. These sections can sustain heavy weights while yet being relatively light because stainless steel has a good strength to weight ratio. As a result, they are a dependable option for many structural uses, including bridges, support columns, and building frames. Additionally, even in extreme situations, A554 Gr 316Ti square hollow sections provide outstanding corrosion resistance. Stainless steel naturally develops a passive oxide layer that prevents corrosion on its surface. These parts are suitable for applications exposed to chemicals, seawater, or extreme humidity thanks to the inclusion of titanium, which further increases this resistance.

The aesthetic appeal of A554 Gr 316Ti square hollow sections is another outstanding quality. Stainless steel's polished, gleaming surface gives any architectural design a touch of class. This makes them a popular option for handrails, balustrades, and interior and external decorating, where both use and aesthetic appeal are crucial. A554 Gr 316Ti square hollow sections are adaptable and simple to deal with when it comes to manufacture. They are easily shaped, cut, and welded to satisfy certain design specifications. With the strength and integrity of the stainless steel preserved, this flexibility enables architects and engineers to unleash their imaginations and create distinctive buildings.

Stainless Steel A554 Gr 316Ti Square Hollow Sections Specification

Buy DIN 1.4571 SS Square Hollow Section Pipes, Stainless Steel UNS S31635 SHS Pipe, A554 SS 316Ti Structural Square Hollow Sections

Stainless Steel A554 Gr 316Ti Square Hollow Sections Sizes:

Size mm	kg/m	Size mm	kg/m
20 x 20 x 2.0	1.12	20 x 20 x 2.5	1.35
25 x 25 x 1.5	1.06	25 x 25 x 2.0	1.43
25 X 25 X 2.5	1.74	25 X 25 X 3.0	2.04
30 X 30 X 2.0	1.68	30 X 30 X 2.5	2.14
30 X 30 X 3.0	2.51	40 x 40 x 1.5	1.81
40 x 40 x 2.0	2.31	40 x 40 x 2.5	2.92
40 x 40 x 3.0	3.45	40 x 40 x 4.0	4.46
40 x 40 x 5.0	5.40	50 x 50 x 1.5	2.28
50 x 50 x 2.0	2.93	50 x 50 x 2.5	3.71
50 x 50 x 3.0	4.39	50 x 50 x 4.0	5.72
50 x 50 x 5.0	6.97	60 x 60 x 3.0	5.34
60 x 60 x 4.0	6.97	60 x 60 x 5.0	8.54
60 x 60 x 6.0	9.45	70 x 70 x 3.0	6.28
70 x 70 x 3.6	7.46	70 x 70 x 5.0	10.11
70 x 70 x 6.3	12.50	70 x 70 x 8	15.30
75 x 75 x 3.0	7.07	80 x 80 x 3.0	7.22
80 x 80 x 3.6	8.59	80 x 80 x 5.0	11.70
80 x 80 x 6.0	13.90	90 x 90 x 3.0	8.01
90 x 90 x 3.6	9.72	90 x 90 x 5.0	13.30
90 x 90 x 6.0	15.76	90 x 90 x 8.0	20.40
100 x 100 x 3.0	8.96	100 x 100 x 4.0	12.00
100 x 100 x 5.0	14.80	100 x 100 x 5.0	14.80
100 x 100 x 6.0	16.19	100 x 100 x 8.0	22.90
100 x 100 x 10	27.90	120 x 120 x 5	18.00
120 x 120 x 6.0	21.30	120 X 120 X 6.3	22.30
120 x 120 x 8.0	27.90	120 x 120 x 10	34.20
120 X 120 X 12	35.8	120 X 120 X 12.5	41.60
140 X 140 X 5.0	21.10	140 X 140 X 6.3	26.30
140 X 140 X 8	32.90	140 X 140 X 10	40.40
140 X 140 X 12.5	49.50	150 X 150 X 5.0	22.70
150 X 150 X 6.3	28.30	150 X 150 X 8.0	35.40
150 X 150 X 10	43.60	150 X 150 X 12.5	53.40
150 X 150 X 16	66.40	150 X 150 X 16	66.40
180 X 180 X 5	27.40	180 X 180 X 6.3	34.20
180 X 180 X 8	43.00	180 X 180 X 10	53.00
180 X 180 X 12.5	65.20	180 X 180 X 16	81.40
200 X 200 X 5	30.50	200 X 200 X 6	35.8
200 x 200 x 6.3	38.2	200 x 200 x 8	48.00
200 x 200 x 10	59.30	200 x 200 x 12.5	73.00
200 x 200 x 16	91.50	250 x 250 x 6.3	48.10
250 x 250 x 8	60.50	250 x 250 x 10	75.00
250 x 250 x 12.5	92.60	250 x 250 x 16	117.00
300 x 300 x 6.3	57.90	300 x 300 x 8	73.10
300 x 300 x 10	57.90	300 x 300 x 8	90.70
300 x 300 x 12.5	112.00	300 x 300 x 16	142.00
350 x 350 x 8	85.70	350 x 350 x 10	106.00
350 x 350 x 12.5	132.00	350 x 350 x 16	167.00
400 x 400 x 10	122.00	400 x 400 x 12	141.00
400 x 400 x 12.5mm	152.00	400 x 400 x 16	192

Stainless Steel A554 Gr 316Ti Square Hollow Sections Grades

Ready Stock of Stainless Steel A554 Gr 316Ti Square Hollow Sections

ASME SA554 316Ti Stainless Steel Square Hollow Section Equivalent Grades

Stainless Steel A554 Gr 316Ti Square Hollow Section Chemical Composition

Stainless Steel A554 Gr 316Ti Square Hollow Section Mechanical Composition

Stainless Steel A554 Gr 316Ti Square Hollow Sections Updated Price List

Request the latest AISI 316Ti Stainless Steel Square Hollow Section Tube List. Please click on the request a quote button or click here to request the updated price list and ready stock information along with your requirement. Ranfit Metals & Alloys maintains a stock of all standard items and can export them at best price for Grade 316Ti A554 SS Square Tube.

Ranfit Metals & Alloys is a ISO approved certified AISI 316Ti Stainless Steel Square Hollow Section Tube exporter in India. We are known as a trusted vendor as a A554 SS 316Ti Structural Square Hollow Sections, Gr 316Ti SS ASTM A554 SHS Tubing distributor & dealer in your country. Our 316Ti Stainless Steel Welded Square Tubes are tested to international standards, and specifications as per DIN, JIS, EN, ASTM etc. We have huge stock in Asia, GCC, Gulf, Middle east, UK to supply with over 28 countries, we provide after sales service and fast delivery.
