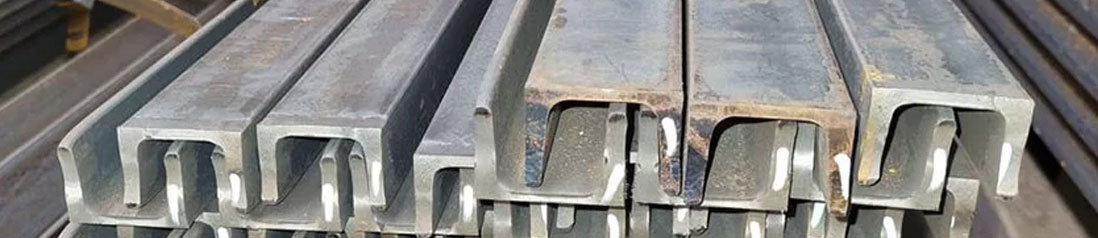

Steel beams of the UPE (Unequal Parallel Flange) European Standard Profiles type are frequently used in building and structural engineering. The distinctive shape of these profiles, which has a symmetrical cross-section with a sloping inner flange and parallel outer flanges, distinguishes them from other types of profiles. Excellent load-bearing capacity and structural stability are provided by this design. UPE profiles are made in accordance with the European standard EN 10025, which guarantees their high quality and adherence to predetermined specifications. To accommodate various building requirements, they are manufactured of hot-rolled steel and come in a range of sizes and specifications.
The high strength-to-weight ratio of UPE profiles is one of their main benefits. These beams can bear enormous loads while carrying the fewest amount of weight possible because to the effective distribution of forces made possible by the sloping inner flange. Because of this, UPE profiles are a great option for projects where weight reduction is important, like bridge construction or high-rise development. UPE profiles also provide flexibility in design and construction. It is simpler to attach them to other structural components because of their parallel flanges, which offer a sizable surface area for connections. This enables adaptable and effective construction techniques, cutting down on project duration and expense overall.
UPE profiles are used in many different structural systems, such as building frames, platforms, supports, and commercial buildings. They are frequently utilised in infrastructure projects like bridges, viaducts, and railway tracks because of how tough and durable they are in those environments. UPE profiles have advantages for structural purposes as well as aesthetic design. Their sleek and contemporary design can provide architecture projects more visual appeal by giving them a more modern and upscale appearance. UPE European Standard Profiles are high-strength steel beams with a distinctive shape and parallel flanges, to sum up. They offer superior structural stability, load-bearing capacity, and construction versatility. UPE profiles are a preferred option in many building applications throughout Europe and beyond because of its strength-to-weight ratio and aesthetically pleasing design.
Dimensions | straight bars with height 30 mm and from 80 mm up to 140 mm |
---|---|
TDR | the bars are supplied according to the referenced production standard |
Steel Grade | S235JR, S275JR/J0, S355JR/J2 |
Standard Length | 6000, 6100 mm / 12000, 12100 mm |
Steel | EN 10025-2 |
Tolerances | EN 10279 |
Packing | In bundles, Anticorrosion heat preservation, Varnish coating, Ends can be bevelled or rectangular cut, End Capped Certification & supplementary test, Finishing & Identity Mark |
Delivery Condition | Bright Annealed, Polished or Annealed and Pickled |
Buy EN 10025-2 UPE Profiles, UPE European Standard Profiles, S275JR/J0 UPE Profiles, UPE Profiles
Name |
h |
b |
tw |
tf |
Execution |
mm |
mm |
mm |
mm |
||
UPE-80 |
80 |
50 |
4 |
7 |
laser-fused |
UPE-100 |
100 |
55 |
4.5 |
7.5 |
laser-fused |
UPE-120 |
120 |
60 |
5 |
8 |
laser-fused |
UPE-140 |
140 |
65 |
5 |
9 |
laser-fused |
UPE-160 |
160 |
70 |
5.5 |
9.5 |
laser-fused |
UPE-180 |
180 |
75 |
5.5 |
10.5 |
laser-fused |
UPE-200 |
200 |
80 |
6 |
11 |
laser-fused |
UPE-220 |
220 |
85 |
6.5 |
12 |
laser-fused |
UPE-240 |
240 |
90 |
7 |
12.5 |
laser-fused |
UPE-270 |
270 |
95 |
7.5 |
13.3 |
laser-fused |
UPE-300 |
300 |
100 |
9.5 |
15 |
laser-fused |
UPE-330 |
330 |
105 |
11 |
16 |
laser-fused |
UPE-360 |
360 |
110 |
12 |
17 |
laser-fused |
UPE-400 |
400 |
115 |
13.5 |
18 |
laser-fused |
