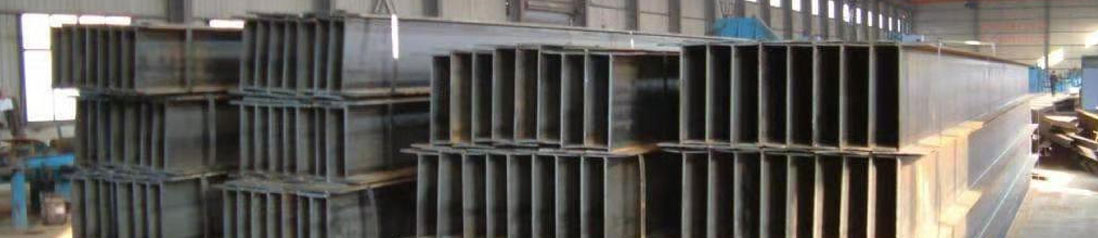

IPE Profiles
S235JR IPE Profile, IPE European Standard Profiles, Best Price of S355JR/J2 IPE Profiles Supplier in India.
IPE, short for "I-beam Parallel Flange European," is the name of a standardised steel profile used in engineering and construction projects all throughout Europe. These profiles are made to give different kinds of buildings, bridges, and infrastructure projects structural support and stability. We shall examine the main traits, benefits, and typical applications of IPE European standard profiles in this post. The distinctive I-shaped cross-section of IPE profiles is one of their key characteristics. They can handle enormous loads and resist bending and torsion forces thanks to their outstanding load-bearing capacity and structural integrity. IPE profiles' parallel flanges guarantee weight distribution equality and improved stability, while the tapered flanges contribute to weight reduction without sacrificing strength.
IPE profiles are produced in accordance with European standards, guaranteeing uniformity in terms of size and quality among various manufacturers. The standard designations provide the profile's height (in millimetres) and weight (in kilogrammes) per square metre. For instance, an IPE 300 profile weights a certain amount per metre and has a height of 300 mm. The primary material used to create these profiles is structural steel, which gives excellent strength and durability. Utilising steel also makes it simple to customise and fabricate items to meet the needs of certain projects. IPE profiles are an environmentally responsible material choice because steel is a sustainable and recyclable one. IPE profiles are widely used in several construction projects because of their outstanding load-bearing capabilities.
Engineers and architects may rely on clearly specified features and dimensions thanks to the standardisation of IPE profiles, which streamlines the design and construction processes. This expedites the planning process and guarantees alignment with other structural components. Additionally, the availability of IPE profiles from a variety of manufacturers makes it easier to get materials affordably and allows for simple replacement or extension in existing structures. IPE European standard profiles are widely utilised in engineering and construction because of their versatility, stability, and structural strength. These profiles provide good load-bearing capability while weighing the least amount of material possible thanks to their I-shaped cross-section, parallel flanges, and tapered design. They are a dependable option for a variety of applications, from buildings and bridges to industrial structures, thanks to their standardised dimensions and high-quality steel construction.
EN 10025-2 IPE Profiles, IPE Profiles Manufacturer in Mumbai, India.
IPE Profiles Specification
| Dimensions | straight bars with height 30 mm and from 80 mm up to 140 mm |
|---|---|
| TDR | the bars are supplied according to the referenced production standard |
| Steel Grade | S235JR, S275JR/J0, S355JR/J2 |
| Standard Length | 6000, 6100 mm / 12000, 12100 mm |
| Steel | EN 10025-2 |
| Dimensions | DIN 1026-1 |
| Tolerances | EN 10279 |
| Packing | In bundles, Anticorrosion heat preservation, Varnish coating, Ends can be bevelled or rectangular cut, End Capped Certification & supplementary test, Finishing & Identity Mark |
| Delivery Condition | Bright Annealed, Polished or Annealed and Pickled |
Buy EN 10025-2 IPE Profiles, IPE European Standard Profiles, S275JR/J0 IPE Profiles, IPE Profiles
IPE Profiles Sizes :
| Profile | Dimensions, mm | Weight | Section area | |||
| h | b | s | t | kg/m | cm2 | |
| IPE 80 | 80 | 46 | 3,8 | 5,2 | 6,0 | 7,64 |
| IPE 100 | 100 | 55 | 4,1 | 5,7 | 8,1 | 10,3 |
| IPE 120 | 120 | 64 | 4,4 | 6,3 | 10,4 | 13,2 |
| IPE 140 | 140 | 73 | 4,7 | 6,9 | 12,9 | 16,4 |
| IPE 160 | 160 | 82 | 5 | 7,4 | 15,8 | 20,1 |
| IPE 180 | 180 | 91 | 5,3 | 8 | 18,8 | 23,9 |
| IPE 200 | 200 | 100 | 5,6 | 8,5 | 22,4 | 28,5 |
| IPE 220 | 220 | 110 | 5,9 | 9,2 | 26,2 | 33,4 |
| IPE 240 | 240 | 120 | 6,2 | 9,8 | 30,7 | 39,1 |
| IPE 270 | 270 | 135 | 6,6 | 10,2 | 36,1 | 45,9 |
| IPE 300 | 300 | 150 | 7,1 | 10,7 | 42,2 | 53,8 |
| IPE 330 | 330 | 160 | 7,5 | 11,5 | 49,1 | 62,6 |
| IPE 360 | 360 | 170 | 8 | 12,7 | 57,1 | 72,7 |
| IPE 400 | 400 | 180 | 8,6 | 13,5 | 66,3 | 84,5 |
| IPE 450 | 450 | 190 | 9,4 | 14,6 | 77,6 | 98,8 |
| IPE 500 | 500 | 200 | 10,2 | 16 | 90,7 | 116 |
| IPE 550 | 550 | 210 | 11,1 | 17,2 | 106 | 134 |
| IPE 600 | 600 | 220 | 12 | 19 | 122 | 156 |
Hollow Section Grades
| UPE Profiles | UPN Profiles | IPE Profiles |
| IPN Profiles | HEA (IPBL) - European Wide Flange Beams | HEB (IPB) - European Wide Flange Beams |
Ready Stock of IPE Profiles
| IPE Profiles Section Properties | IPE Profiles |
| IPE Profiles prices | IPE 240 Profiles Dimensions |
| IPE Profiles Manufacture in India | IPE H Profiles |
| IPE Profiles Section | IPE Profiles Sizes |
| IPE Profiles Dimensions | IPE European Profiles |
| IPE Profiles Abbreviation Meaning | IPE I Profiles |
| IPE 360 Profiles | European Standard Profiles IPE |
IPE Profiles Updated Price List
Request the latest S235JR IPE Profiles List. Please click on the request a quote button or click here to request the updated price list and ready stock information along with your requirement. Ranfit Metals & Alloys maintains a stock of all standard items and can export them at best price for IPE European Standard Profiles.
Ranfit Metals & Alloys is a ISO approved certified DIN 1026 - IPE Profiles exporter in India. We are known as a trusted vendor as a S275JR/J0 IPE Profiles, Hot Rolled IPE Profiles distributor & dealer in your country. Our European Standard Steel IPE Profile are tested to international standards, and specifications as per DIN, JIS, EN, ASTM etc. We have huge stock in Asia, GCC, Gulf, Middle east, UK to supply with over 28 countries, we provide after sales service and fast delivery.
