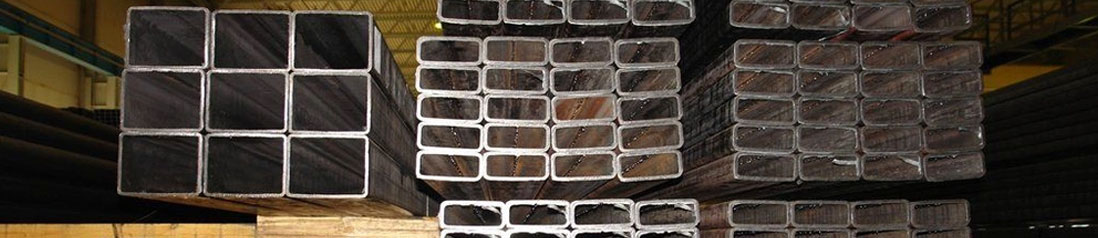

Stainless Steel A554 Gr 316 Rectangular Hollow Sections
ASTM A554 Gr.316 Stainless Steel Seamless Rectangular Hollow Sections, Stainless Steel A554 Gr 316 RHS Tubes, Best Price of ASME SA554 Stainless Steel 316 Rectangular Pipe Supplier in India.
Due to its superior corrosion resistance, high strength, and aesthetic appeal, stainless steel is a flexible and frequently used material in a variety of sectors. Rectangular hollow sections (RHS) made of stainless steel grade A554 are a common type of structural tubing. We shall examine the main traits, uses, and benefits of A554 Gr 316 RHS in this post. Grade 316 stainless steel, an austenitic stainless steel with molybdenum content, is used in the production of A554 Gr 316 RHS. The material's corrosion resistance is improved by the molybdenum addition, especially in chloride conditions. For applications where exposure to corrosive substances, such as saltwater or chemicals, is anticipated, A554 Gr 316 RHS is the best material option.
The rectangular hollow parts enable versatility in design while delivering a solid and strong framework. To meet the needs of varied projects, A554 Gr 316 RHS is available in a variety of diameters, thicknesses, and lengths. It is suited for applications needing flat surfaces and straight edges because to its rectangular design. A554 Gr 316 RHS is frequently used in industrial, building, and architectural projects. Architecturally speaking, A554 Gr 316 RHS is frequently used for handrails, balustrades, and ornamental components in buildings. Its smooth, polished surface finish gives architectural designs a dash of class and modernity. The material's resistance to corrosion assures its toughness and lifespan even in locations with a lot of moisture or exposure to the elements.
Machinery frames, equipment supports, and components for numerous industries, including food processing, pharmaceuticals, and maritime, are among the industrial uses of A554 Gr 316 RHS. The material is appropriate for use in areas where cleanliness and durability are important due to its hygienic qualities and resistance to corrosion. Low maintenance requirements, high weldability, and aesthetic appeal are some benefits of A554 Gr 316 RHS. The material does not require additional protective coatings and is simple to clean. It can be easily fabricated and installed because it can be welded using conventional methods. In conclusion, A554 Gr 316 RHS is a premium stainless steel structural tubing that is extensively used in industrial, building, and architectural applications.
Grade 316 A554 SS Rectangular Tube, SS SUS 316 Rectangular Box Sections Manufacturer in Mumbai, India.
Stainless Steel A554 Gr 316 Rectangular Hollow Sections Specification
| Specifications |
ASTM A554 / ASME SA554(Ornamental Tubing Specification) or ASTM A 312 |
| Sizes |
10mm x 20mm to 150 x 300mm, other non standard sizes available on request |
| Wall Thickness |
0.5mm to 6mm |
| Length |
Up to 6 meters, custom cut lengths |
| Type |
Seamless/ Welded / ERW |
| Packing |
In bundles, Anticorrosion heat preservation, Varnish coating, Ends can be bevelled or Rectangular cut, End Capped Certification & supplementary test, Finishing & Identity Mark Surface Protection : Black (Self Coloured uncoated), Varnish/Oil Coating, Pre-Galvanized, Hot Dip Galvanized |
| Finish |
2B, No.1 Pickled Finish, No.4 finish, BA Finish, No.8 Mirror Finish, Electropolished Rectangular Pipes |
| Delivery Condition |
Bright Annealed, Polished or Annealed and Pickled |
Buy DIN 1.4401 SS Rectangular Hollow Section Pipes, Stainless Steel UNS S31600 RHS Pipe, A554 SS 316 Structural Rectangular Hollow Sections
Stainless Steel A554 Gr 316 Rectangular Hollow Sections Sizes:
| Size mm |
kg/m |
Size mm |
kg/m |
| 40 x 20 x 2.0 |
1.68 |
40 x 20 x 2.5 |
2.03 |
| 40 x 20 x 3.0 |
2.36 |
40 x 25 x 1.5 |
1.44 |
| 40 x 25 x 2.0 |
1.89 |
40 x 25 x 2.5 |
2.23 |
| 50 x 25 x 2.0 |
2.21 |
50 x 25 x 2.5 |
2.72 |
| 50 x 25 x 3.0 |
3.22 |
50 x 30 x 2.5 |
2.92 |
| 50 x 30 x 3.0 |
3.45 |
50 x 30 x 4.0 |
4.46 |
| 50 x 40 x 3.0 |
3.77 |
60 x 40 x 2.0 |
2.93 |
| 60 x 40 x 2.5 |
3.71 |
60 x 40 x 3.0 |
4.39 |
| 60 x 40 x 4.0 |
5.72 |
70 x 50 x 2 |
3.56 |
| 70 x 50 x 2.5 |
4.39 |
70 x 50 x 3.0 |
5.19 |
| 70 x 50 x 4.0 |
6.71 |
80 x 40 x 2.5 |
4.26 |
| 80 x 40 x 3.0 |
5.34 |
80 x 40 x 4.0 |
6.97 |
| 80 x 40 x 5.0 |
8.54 |
80 x 50 x 3.0 |
5.66 |
| 80 x 50 x 4.0 |
7.34 |
90 x 50 x 3.0 |
6.28 |
| 90 x 50 x 3.6 |
7.46 |
90 x 50 x 5.0 |
10.11 |
| 100 x 50 x 2.5 |
5.63 |
100 x 50 x 3.0 |
6.75 |
| 100 x 50 x 4.0 |
8.86 |
100 x 50 x 5.0 |
10.90 |
| 100 x 60 x 3.0 |
7.22 |
100 x 60 x 3.6 |
8.59 |
| 100 x 60 x 5.0 |
11.70 |
120 x 80 x 2.5 |
7.65 |
| 120 x 80 x 3.0 |
9.03 |
120 x 80 x 4.0 |
12.00 |
| 120 x 80 x 5.0 |
14.80 |
120 x 80 x 6.0 |
17.60 |
| 120 x 80 x 8.0 |
22.9 |
150 x 100 x 5.0 |
18.70 |
| 150 x 100 x 6.0 |
22.30 |
150 x 100 x 8.0 |
29.10 |
| 150 x 100 x 10.0 |
35.70 |
160 x 80 x 5.0 |
18.00 |
| 160 x 80 x 6.0 |
21.30 |
160 x 80 x 8.0 |
27.90 |
| 200 x 100 x 5.0 |
22.70 |
200 x 100 x 6.0 |
27.00 |
| 200 x 100 x 8.0 |
35.4 |
200 x 100 x 10.0 |
43.60 |
| 250 x 150 x 5.0 |
30.5 |
250 x 150 x 6.0 |
38.2 |
| 250 x 150 x 8.0 |
48.0 |
250 x 150 x 10 |
59.3 |
| 300 x 200 x 6.0 |
48.10 |
300 x 200 x 8.0 |
60.50 |
| 300 x 200 x 10.0 |
75.00 |
400 x 200 x 8.0 |
73.10 |
| 400 x 200 x 10.0 |
90.70 |
400 x 200 x 16 |
142.00 |
Stainless Steel Rectangular Hollow Sections Grades
Ready Stock of Stainless Steel A554 Gr 316 Rectangular Hollow Sections Section
| stainless steel A554 Gr 316 Hollow Section Rectangular |
SA554 SS 316 Hollow Section Rectangular Tube |
| ASME SA554 Rectangular Stainless Steel 316 Structural Hollow Section |
SS A554 Gr 316 Seamless Rectangular Sections |
| SS A554 Gr 316 RHS Tubing |
ASTM A554 Stainless Steel Gr 316 Seamless RHS Pipe |
| Rectangular stainless steel box section |
Stainless Steel A554 316 Rectangular Hollow Section Pipe |
| Stainless Steel Rectangular Pipes |
ASTM A554 SS Rectangular Tubes |
| ASTM A554 316 SS Rectangular Hollow Section |
UNS S31600 Seamless RHS Tube |
| Stainless Steel A554 Gr 316 Rectangular Box Sections |
ASTM A554 SS 316 Rectangular Hollow Box |
| A554 Gr 316 SS Seamless Pipe |
Type 316 ASTM A554 Stainless Steel Rectangular Section |
| A554 Grade 316 SS Rectangular Tube |
Welded SUS 316 SS RHS Pipe |
| AISI Stainless Steel 316 welded structural hollow sections |
SS A554 Gr 316 Rectangular Pipe |
| A554 316 SS Seamless Rectangular Hollow Section Tube |
Stainless Steel DIN 1.4401 Welded Rectangular Tube |
| 316 Stainless Steel ASME SA554 Rectangular ERW Hollow Section |
SS 316 A554 Seamless Rectangular Hollow Section |
| ASME SA554 316 SS Hollow Rectangular Tube |
A554 Gr 316 Stainless Steel RHS Section |
| Grade 316 A554 Rectangular steel box section |
SS 316 Rectangular Hollow Section |
| Stainless Steel A554 Gr 316 ERW Rectangular Hollow Section |
Rectangular SS A554 Grade 316 structural steel tube |
ASME SA554 316 Stainless Steel Rectangular Hollow Section Equivalent Grades
| STANDARD |
WERKSTOFF NR. |
UNS |
JIS |
BS |
GOST |
AFNOR |
EN |
| SS 316 |
1.4401 / 1.4436 |
S31600 |
SUS 316 |
316S31 / 316S33 |
- |
Z7CND17‐11‐02 |
X5CrNiMo17-12-2 / X3CrNiMo17-13-3 |
Stainless Steel A554 Gr 316 Rectangular Hollow Section Chemical Composition
| Grade |
C |
Mn |
Si |
P |
S |
Cr |
Mo |
Ni |
Fe |
| SS 316 |
0.08 max |
2.0 max |
1.0 max |
0.045 max |
0.030 max |
16.00 - 18.00 |
2.00 - 3.00 |
11.00 - 14.00 |
67.845 min |
Stainless Steel A554 Gr 316 Rectangular Hollow Section Mechanical Composition
| Density |
Melting Point |
Tensile Strength |
Yield Strength (0.2%Offset) |
Elongation |
| 8.0 g/cm3 |
1400 °C (2550 °F) |
Psi – 75000 , MPa – 515 |
Psi – 30000 , MPa – 205 |
35 % |
Stainless Steel A554 Gr 316 Rectangular Hollow Sections Updated Price List
Request the latest AISI 316 Stainless Steel Rectangular Hollow Section Tube List. Please click on the request a quote button or click here to request the updated price list and ready stock information along with your requirement. Ranfit Metals & Alloys maintains a stock of all standard items and can export them at best price for Grade 316 A554 SS Rectangular Tube.
Ranfit Metals & Alloys is a ISO approved certified AISI 316 Stainless Steel Rectangular Hollow Section Tube exporter in India. We are known as a trusted vendor as a A554 SS 316 Structural Rectangular Hollow Sections, Gr 316 SS ASTM A554 RHS Tubing distributor & dealer in your country. Our 316 Stainless Steel Welded Rectangular Tubes are tested to international standards, and specifications as per DIN, JIS, EN, ASTM etc. We have huge stock in Asia, GCC, Gulf, Middle east, UK to supply with over 28 countries, we provide after sales service and fast delivery.
